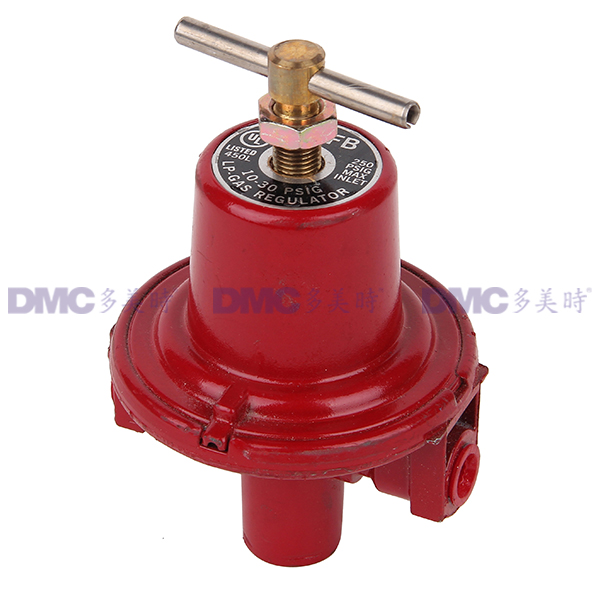

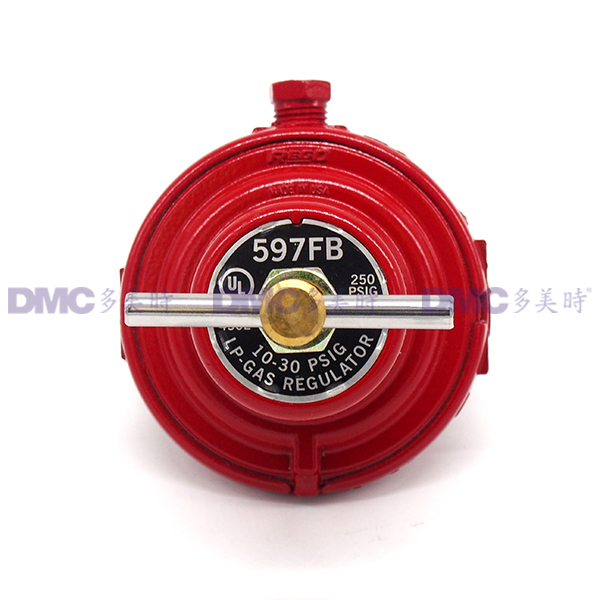

America RegO 597FB Series High Pressure Gas Regulator

Brand: RegO (USA)
Model: 597FBHot
Material: Zinc
Connection: 1/4″
Connection method: Threaded connection
Applicable media: LPG, liquid and gas
Applications: industrial and commercial
Adjustment Method: Tee Handle

Description

America RegO 597FB Series High Pressure Gas Regulator Features:

  • Provides high capacity performance at a reasonable price.
  • Suitable for both liquid and vapor service.
  • Compact design provides for easy installation.
  • Negative direct acting design helps to keep regulator delivery pressures constant even as tank pressures drop.
  • Negative direct acting design provides for excellent performance when needed most – in cold weather, when tank pressures are lowest and system demands are highest.
  • Consistent delivery pressure, especially in cold weather, helps assure maximum performance from the second stage regulator.
  • Can be readily fitted with a pressure gauge in the 1/4″ FNPT port.
  • Molded diaphragm provides an O-ring like seal between the body and the bonnet.
  • Fully painted in brilliant red for complete corrosion protection.
  • Available in four adjustable ranges for maximum performance.
  • Bonnet and body are assembled in the USA using the unique, patented RegULok? Seal System.

RegO 597FB Series Gas Regulator product parameters:

型號(hào)進(jìn)出口尺寸連接方式壓力范圍設(shè)定壓力流量（BTU/hr）
597FA?" NPT螺紋連接1~15101,750,000
597FB10~30203,000,000
597FC20~45303,500,000
597FD40~100404,500,000

Model: 597FA

RegO 597FA Series High Pressure Gas Regulator

Model: 597FA
Connection: ?" NPT
Connection method: Threaded connection
Pressure Range: 1~15
Set Pressure: 10
Capacity (BTU/hr): 1,750,000

Model: 597FC

RegO 597FC Series High Pressure Gas Regulator

Model: 597FC
Connection: ?" NPT
Connection method: Threaded connection
Pressure Range: 20~45
Set Pressure: 30
Capacity (BTU/hr): 3,500,000

Model: 597FD

RegO 597FD Series High Pressure Gas Regulator

Model: 597FD
Connection: ?" NPT
Connection method: Threaded connection
Pressure Range: 40~100
Set Pressure: 40
Capacity (BTU/hr): 4,500,000
